Unicolor Digital Sensors

Unicolor1



The Universal LightProbe Unicolor Digital Sensor is pre-programmed to respond only to a specific color LED, including blue, green, yellow, orange, red, plus white. The Universal LightProbe Unicolor Digital Sensor is designed for the simple ON/OFF test and color check of a single color LED, with a digital output, quickly determining PASS/FAIL status without further processing by the ATE. The Universal LightProbe Unicolor Digital sensor provides the simplest and fastest interface to Automatic Test Equipment (ATE).

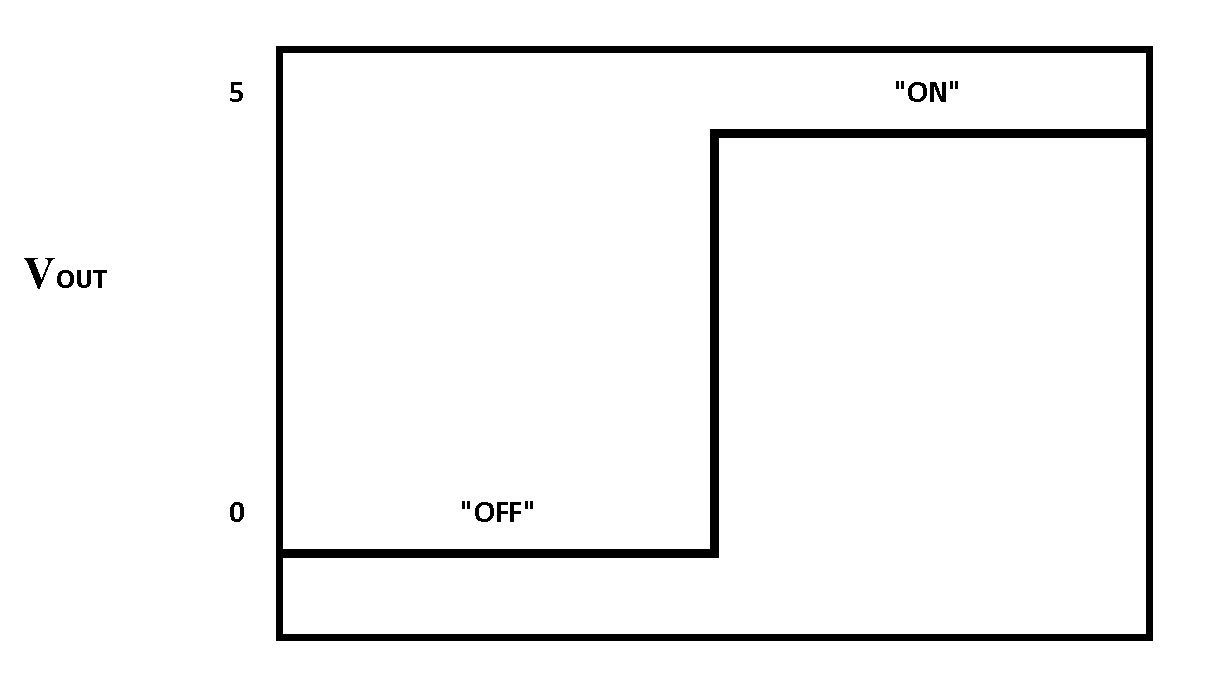

Unicolor digital chart

The Universal LightProbe Unicolor Digital Sensor tests the target LED’s color by providing a Logic “1” voltage output (5 volts) only if the LED is the color specified for the Unicolor Digital Sensor, e.g., blue, green, yellow, orange, red or white. The Sensor will be insensitive to the wrong color,with a Logic “0” output (0 volts). The Sensor provides optimum ATE/ICT Pin Board/memory interface for fast digital burst mode LED test.
